Bitronics Universal Display

Easily Display Measurement Values from Any Substation IED

Connects with DNP3 or Modbus over Ethernet or Serial

Bitronics D650 Series

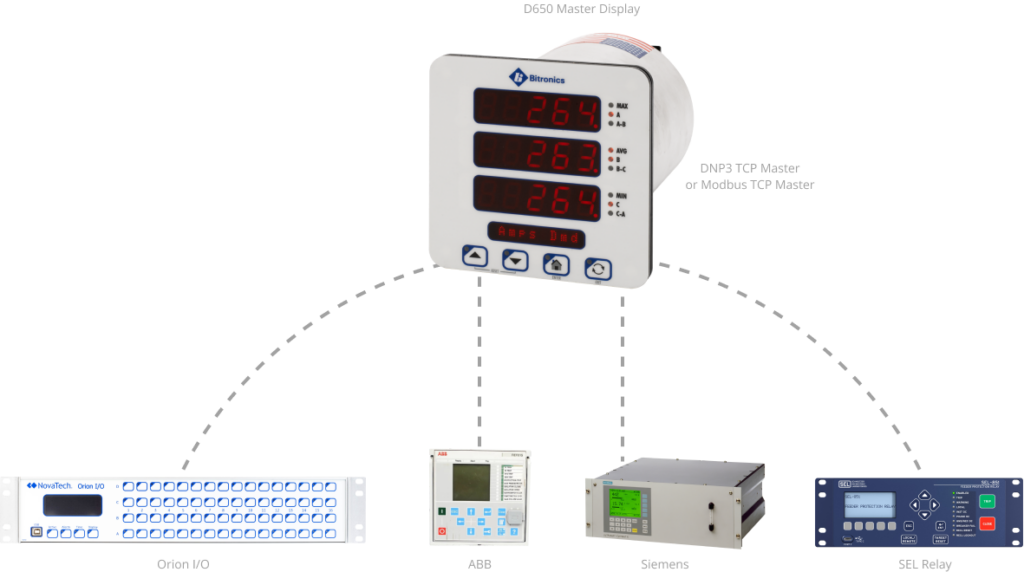

The Bitronics D650 Universal Display (D650MXU011) is designed to connect to substation IEDs to display measurement values resident in those IEDs.


The D650 Detached Display is targeted to replace the Model M870D Detached Display. The Model D650 Detached Display, connects to the 70 Series (M871 and M872) Event Recording and Automation IEDs through one of the serial communications ports. The Model D650 is designed to provide a convenient way to view measurements made by 70 Series or PowerPlex II IEDs. A maximum of 64 (when used with 70 Series), or 10 (when used with PowerPlex II) user-configurable measurement screens can be displayed. The instrument can be set to display a single screen continually or automatically scroll through all available screens. Additionally, the user may manually step through all available screens.

Key Features:

  • Connects to Orion, Bitronics transducer, or any other IED

  • Full set of measurement values are supported, any measurement available in the Bitronics M650M3 meter using Bitronics standard scaling can be displayed.

  • Supports Modbus RTU, DNP3 Serial or Modbus/DNP3 TCP Master protocol

  • User can select registers/points in any desired sequence

  • Option to use in serial display mode so one model can serve as Master or can be used to receive signals from Bitronics M87x or PPX II in existing installation

PowerPlex II Tethered Display

The PowerPlex II Tethered Display (PPXIITD) connects to the PowerPlex II Ethernet Transducer to provide a local display of measured values. The PowerPlex II provides power to the PPXIITD and setup is done via the web server in the PowerPlex II. A maximum of 10 user-configurable measurement screens can be displayed. The instrument can be set to display a single screen continually or automatically scroll through all available screens. Additionally, the user may manually step through all available screens.

Three individual PPXIITD may be mounted horizontally on a 19” panel, if desired.

Features

  • Rugged aluminum 4” (101,6 mm) round case

  • Bright, high-efficiency, high reliability LED’s

  • Three lines displayed simultaneously

  • High resolution: Five significant digits per line

  • Pre-set engineering units or customized text automatically displayed

  • Easy setup and scrolling from front display with “Touch-Sense” buttons

  • Buttons allow for scrolling to desired parameter, or can be set for continuous looping of parameters

  • RJ-11 port connects to PowerPlex II via supplied cable

  • Low profile case, only 1.38” (34.9mm) behind panel

  • Built-in web browser in PowerPlex II allows for setup of PPXIITD

  • Powered from PowerPlex II, so no additional wiring needed
