IBEX Industrial WLAN and LTE Routers
Compact and versatile WLAN devices for reliable wireless transmission in harsh industrial and outdoor environments
Westermo's range of industrial wireless local area network (WLAN) devices have been designed to ensure reliable, continuous, high-speed data communications in extreme operational environments, supporting applications such as communication based train control, monitoring of track conditions, and providing on-board video surveillance and passenger hotspots.
The WLAN devices are approved to the EN 50121-4 standard for trackside applications as well as the EN 50155 standard for onboard applications. In addition to rail applications, the WLAN range is very well suited for deployment in other industries with severe operating conditions and harsh environments, such as mining.
✔ Reliable, compact and secure WLAN access point
• Dual Wi-Fi 802.11ax WLAN interface
• Concurrent 2.4Ghz and 5Ghz
• Low power consumption
• Cybersecurity features
✔ Designed for onboard usage
• EN 50155 and EN 45545-2 Certified
• Compact design with M12 interface
• Wide temperature range
• MACsec and Secure Boot for TCMS
✔ Latest generation 802.11 design
• IEE 802.11ax for maximum efficiency
• Client management features
• Low power consumption
• Flexible and easy setup
Industrial Wireless LAN (WLAN) access points, clients & bridges

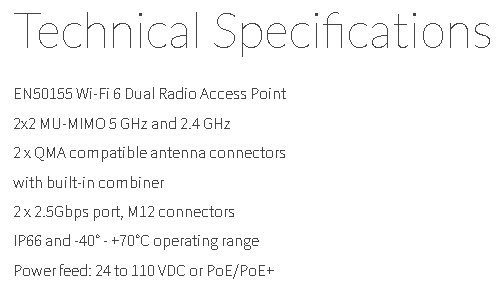

The Ibex-1510 is a concurrent dual-band 802.11ax WLAN access point and client product for onboard and stationary applications. It provides reliable efficient high-speed data transfers and can be used for maintenance access, as part of a TCMS network or as a passenger hotspot.
The Ibex-1510 is designed to withstand the tough environment on-board trains, exposed to constant vibration, extreme temperatures, humidity and a demanding electromagnetic environment.
A GORE-TEX® membrane prevents internal condensation. High-level isolation between all interfaces enables direct connectivity to vehicle auxiliary power and protects against overvoltage and spikes/surge. IP66 protection prevents ingress of water and dust even at the quick connect QMA connectors.
An overall optimized design results in a compact form factor in combination with very high MTBF for easy integration in space restricted installations and low lifecycle cost.
Thorough type testing at independent labs certifies the compliance to a wide range of standards, including EN 50155 and EN50121-4.
Powered by the SW6 operating system, the Ibex-1510 is equipped with the latest cybersecurity features and updates.
